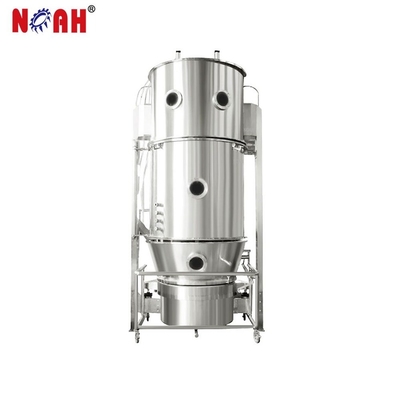

food & Beverage Plant FL120 Stainless Steel Fluid Bed Multifunction High Efficiency Dryer Granulator

1.0 Sets
MOQ
food & Beverage Plant FL120 Stainless Steel Fluid Bed Multifunction High Efficiency Dryer Granulator
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Product Type: Pharmaceutical, chemical,medical
Condition: New
Machine Type: Granulator
Output (kg/h): 120
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor
Weight (KG): 500
Power (kW): 18.5
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Food & Beverage Factory, Food Shop, chemical,pharmaceutical,medical
Showroom Location: None
Product name: FL120 Fluid Bed Dryer Granulator
Container Volume: 420L
Diameter: 1200mm
Capacity: 120kg/batch
Steam Consumption: 140kg/h
Power of fan: 18.5 kw
Power of supply liquid motor: 0.37kw
Compressed air Consumption: 0.9m 3 /min
Working temperature: Normal temperature -120℃ could adjust
Noise: Installed separated with fan ≤75DB
基本情報
お支払配送条件
Packaging Details: plywood case
Supply Ability: 30 Set/Sets per Month
製品の説明
FL120 Multifunction Stainless Steel High-efficiency Fluid Bed Dryer Granulator
Products Description
Item
specification
Name
Unit
3
5
15
30
Container Volume
L
12
22
45
100
Diameter
mm
350
500
550
700
Capacity
kg/batch
3
5
15
30
Steam
Pressure
Mpa
0.4-0.6
Consumption
kg/h
15
18
35
60
Power of fan
kw
2.2
3
5.5
7.5
Power of supply liquid motor
kw
0.37
Compressed air
Pressure
Mpa
0.4-0.6
Consumption
m 3 /min
0.3
0.3
0.6
0.9
Item
specification
Name
Unit
60
120
200
300
500
800-1000
Container Volume
L
220
420
670
1000
1500
By client
Diameter
mm
1000
1200
1400
1600
1800
Capacity
kg/batch
60
120
200
300
500
Steam
Pressure
Mpa
Consumption
kg/h
120
140
180
310
400
Power of fan
kw
11
18.5
22
30
45
Power of supply liquid motor
kw
Compressed air
Pressure
Mpa
Consumption
m 3 /min
0.9
0.9
1.1
1.1
1.5
The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.

Characteristic
1, Mixing-granulating-drying in one-step.
2, Adopting double chamber filtering bags system, removing dust completely.
3, Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is low.
4, Can choose 2 bar explosion-proof design
5, Designed, manufactured and laid out by GMP
