特徴

仕様

Type: Fluid Bed Drying Equipment

Application: Medicine Processing, Chemicals Processing, Food Processing, Pharmaceutical industry

Condition: New

Voltage: 220V/380V

Power: 1.5*2, 1.5*2kW

Dimension(L*W*H): 1286*6510*1940mm

Key Selling Points: High Productivity

Warranty: 1 Year

Weight (KG): 2410

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Construction worksÂ , Energy & Mining, Pharmaceutical industry

Showroom Location: None

Marketing Type: Ordinary Product

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Other

Evaporation Capacity(kg/h): 20-300

Heating Method: ( Steam, Natural gas, Electrical, Coal-fired ) heating.

Material: SUS304, Other

ZG-6-60: Drying machine

Working size: 600*6000mm

Dimension: 1286*6510*1940mm

Weight: 2410kg

After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

基本情報

お支払配送条件

Packaging Details: Standard wooden box packing for export

Supply Ability: 50 Set/Sets per Month

製品の説明

Main application

Suitable for drying and cooling of powdery and granular materials in chemical, pharmaceutical, food, dehydrated vegetables, grain, minerals and other industries. Such as: salt, rice, citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, shredded radish, soybean meal, vinasse, seeds, slag, sugar, etc.

PRODUCT PARAMENTERS

Model	Fluidized bed area（m2）	Inlet air temperature（℃）	Outlet temperature（℃）	Water evaporation capacity（kg/h）	Vibration motor
Model	Fluidized bed area（m2）	Inlet air temperature（℃）	Outlet temperature（℃）	Water evaporation capacity（kg/h）			Model	Power(kw)
ZG-3-30	0.9	70-140	40-70	20-35	ZDJ31-6	0.8×2
ZG-3-45	1.35	70-140	40-70	35-50	ZDJ31-6	0.8×2
ZG-4-45	2.025	70-140	40-70	50-70	ZDJ32-6	1.1×2
ZG-6-45	2.7	70-140	40-70	70-90	ZDJ32-6	1.1×2
ZG-4-60	2.7	70-140	40-70	80-100	ZDJ41-6	1.5×2
ZG-6-60	3.6	70-140	40-70	100-130	ZDJ41-6	1.5×2
ZG-7.5-60	4.5	70-140	40-70	120-140	ZDJ42-6	2.2×2
ZG-6-90	5.4	70-140	40-70	140-170	ZDJ42-6	2.2×2
ZG-6-75	4.5	70-140	40-70	130-150	ZDJ42-6	2.2×2
ZG-7.5-75	5.625	70-140	40-70	150-180	ZDJ51-6	3.0×2
ZG-9-60	6.75	70-140	40-70	160-210	ZDJ51-6	3.0×2
ZG-12-75	9	70-140	40-70	200-260	ZDJ51-6	3.0×2

Model	A	B	C	D	E	F	Weight（kg）
ZG-3-30	3000	300	1350	900	430	1650	1250
ZG-3-45	4500	300	1350	900	430	1650	1560
ZG-4-45	4500	450	1550	950	430	1700	1670
ZG-6-45	4500	600	1650	950	430	1700	1910
ZG-4-60	6000	450	1650	950	430	1700	2100
ZG-6-60	6000	600	1700	1000	500	1700	2410
ZG-7.5-60	6000	750	1850	1000	600	1850	2340
ZG-6-90	6000	900	2000	1000	600	1850	3160
ZG-6-75	7500	600	1850	1000	600	1850	3200
ZG-7.5-75	7500	750	2000	1000	600	1850	3600
ZG-9-60	7500	900	2100	1000	600	1850	4140
ZG-12-75	7500	1200	2500	1150	800	2050	5190

PRODUCT DESCRIPTION

Working principle

The material enters the machine from the feed port. Under the action of vibration, the material is thrown along the

horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air passes through the cyclone separator to remove dust. It is discharged from the exhaust port, and the dry material is discharged from the discharge port.

Features of vibrating fluidized bed dryer:

1. The material is heated evenly, the heat exchange is sufficient, the drying strength is high, and the energy-saving is about 30% compared with ordinary dryers.
2. The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long life.
3. Stable fluidization, no dead ends and blow-through phenomenon. The opening form of the bed and the opening rate is important. The final moisture and output can be controlled by the amplitude and the amount of feed.
4. Good adjustability and wide adaptability.
5. It has little damage to the surface of the material, and can be used for drying fragile materials, and the work effect will not be affected when the material particles are irregular. Significantly better than fluidized bed.
6. The fully enclosed structure effectively prevents cross-contamination between materials and air, and the working environment is clean.

PRODUCT SHOW

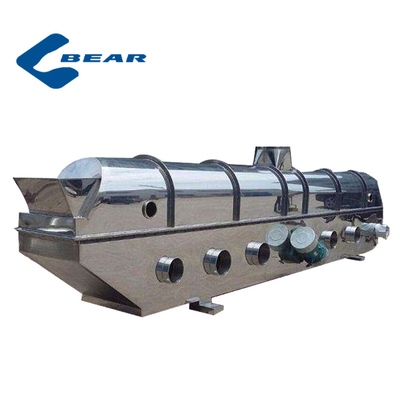

Medicine processing seed vibrating fluid bed dryer in fluid bed drying machine fluid bed drying machine, non-standard and high quality
